ET6868

  • 产品信息

Die casting aluminum body.

Ultra white tempered glass.

Silicone gasket.

High efficiency PC lens.

Anti-corrosion electrostatic powder coating

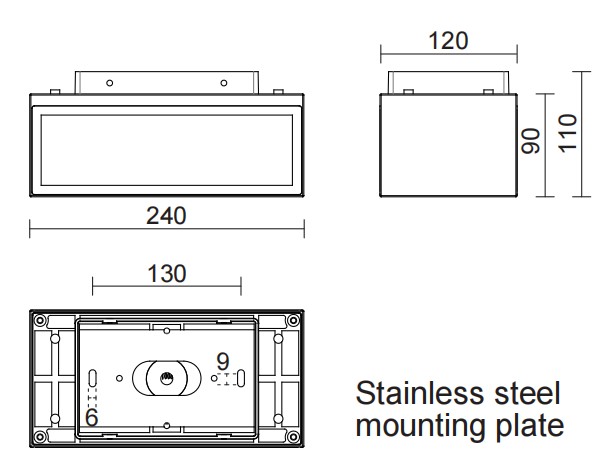

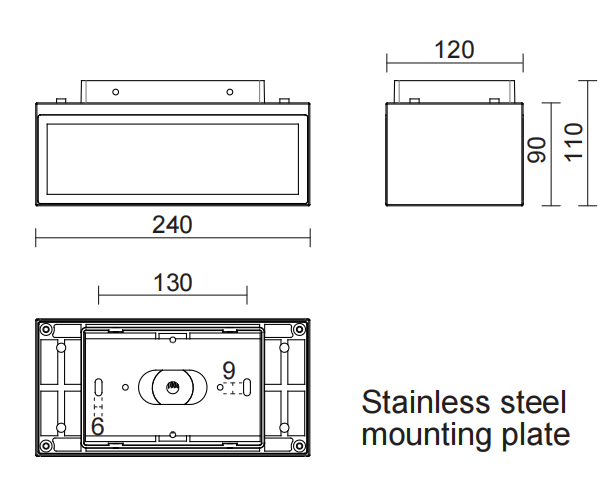

Stainless steel external screws and mounting plate.

Structurally waterproof, detachable for easy replacement of LED, lens, and driver

Marine grade is also available, please contact sales to get details.


型号 功率 角度 色温 流明 控制方式 色容差 显色指数 LED 电压 重量
ET6868 14W Asymmetric 2700K/3000K/4000K 684lm ON/OFF 5 80 LEDx5 220V-240V 3KG
  • 规格
  • 下载
  • 配件

ET6868

Electrical and Control

Voltage 220V-240V
Power14W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityLED X 5
Beam AngleAsymmetric
Delivered Lumen684lm
Colour RenderingCRI 80
SDCM5
CCT2700K/3000K/4000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE


ET6868

文件

ET6868.IES

ET6868

可选配件

  • Information
  • Downloads
  • Accessories
  • Service

71 025

DALI cross switch

DALI cross switch
sdsdsds

71 025

DALI cross switch

DALI cross switch
下载

Product data sheet

Product data sheet

The technical specifications in the instructions for use, product data sheets and quotation texts refer to the products manufactured at the time of publication. We are constantly working to improve the performance and efficiency of our products. The goods delivered may therefore deviate slightly from those advertised.
