ET7052

  • 产品信息

Compact Landscape Light.

Die casting aluminum body.

Ultra white tempered glass.

Silicone gasket.

High efficiency PMMA lens.

Anti-corrosion electrostatic powder coating.

Stainless steel external screws and mounting plate.

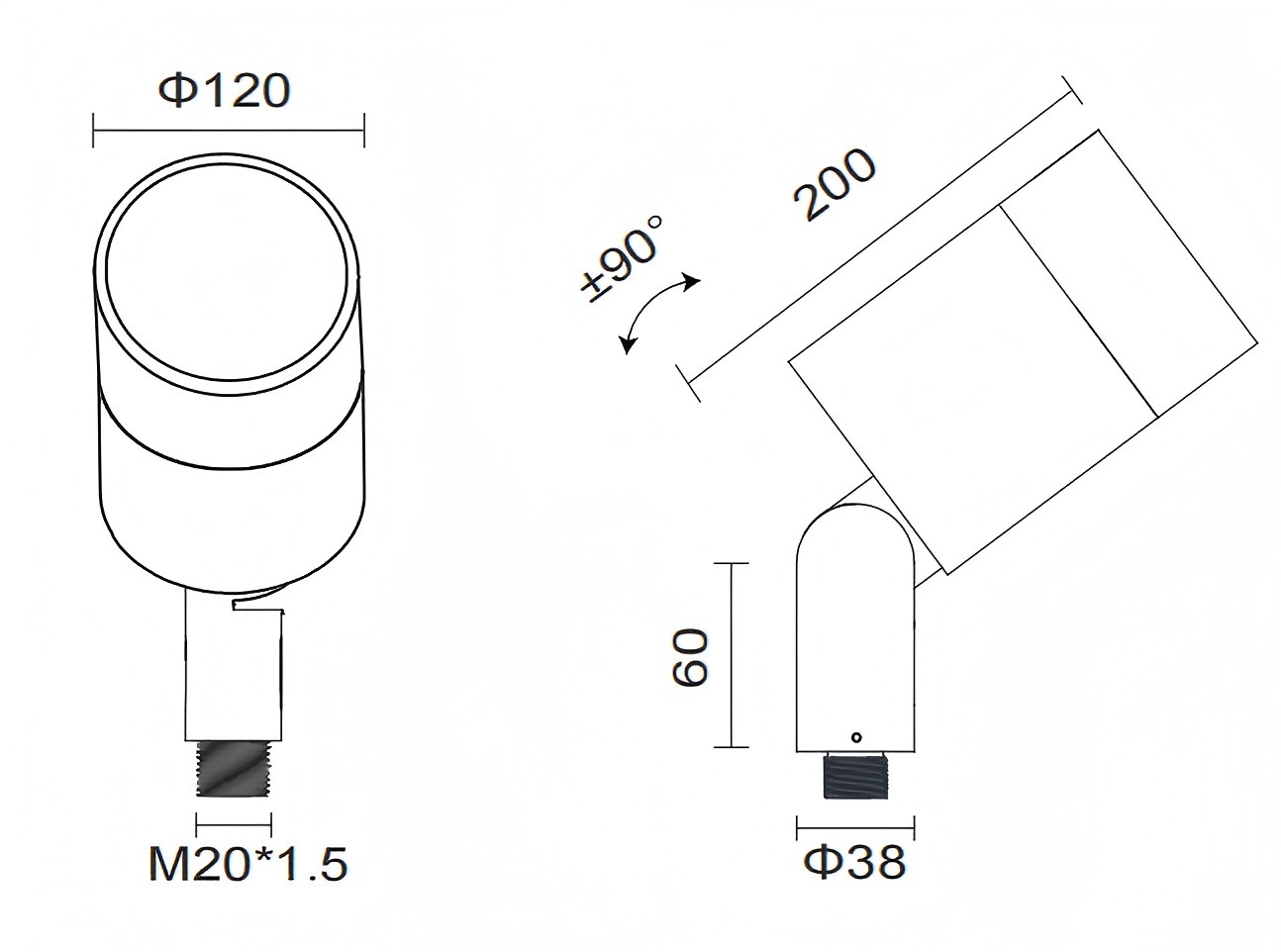

Vertically ± 90 ° adjust and horizontally 360 ° rotate.

Special surface treatment is required for coastal environments.

Structurally waterproof, detachable for easy maintenance of LED, lens, shroud and driver.


型号 功率 角度 色温 流明 控制方式 色容差 显色指数 LED 电压 重量
ET7052.RGBW 45W 12°/25°/36°/60°/15°*45° 2700K/3000K/4000K/5000K DMX512 80 LEDx6 24VDC 3.6KG
ET7052 42W 15°/24°/36°/50°/20°*50° 2700K/3000K/4000K/5000K 3488lm（3000K 15°） ON/OFF 3 80 COBx1 220V-240V 3.6KG
  • 规格
  • 下载
  • 配件

ET7052.RGBW

Electrical and Control

Voltage24VDC
Power45W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityLED X 6
Beam Angle12°/25°/36°/60°/15°*45°
Delivered Lumen
Colour RenderingCRI 80
SDCM
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3.6KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE


ET7052.RGBW

文件

ET7052.RGBW

可选配件

  • 规格
  • 下载
  • 配件

ET7052

Electrical and Control

Voltage220V-240V
Power42W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityCOB X 1
Beam Angle15°/24°/36°/50°/20°*50°
Delivered Lumen
Colour RenderingCRI 80
SDCM
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3.6KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE


ET7052

文件

ET7052.IES

ET7052

可选配件
