景观灯----配置配电箱

ET7077

  • 产品信息

紧凑型景观灯。

压铸铝制车身。

超白钢化玻璃。

硅胶垫片。

高效PMMA透镜。

防腐蚀静电粉末涂料。

不锈钢外螺钉和安装板。

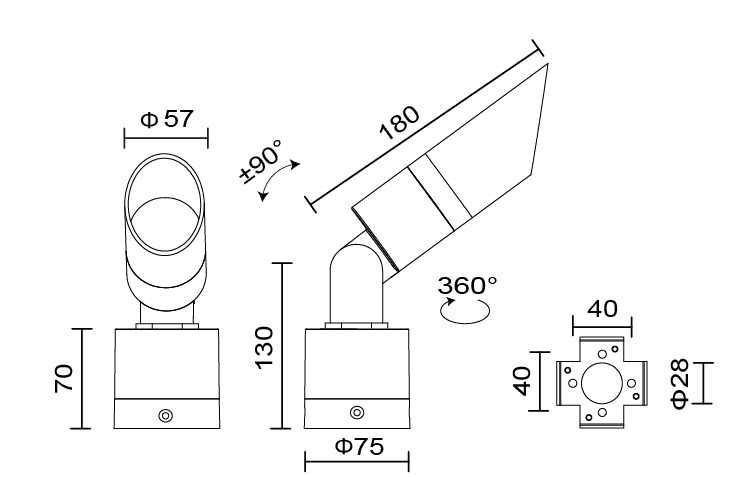

垂直调整±90°，水平旋转360°。

沿海环境需要特殊的表面处理。

结构防水，可拆卸，便于LED、镜头、护罩和驱动器的维护。

型号 功率 角度 色温 流明 控制方式 色容差 显色指数 LED 电压 重量
ET7077.RGBW 45W 12° / 25° / 36° / 60° / 15°*45° 2700K / 3000K / 4000K / 5000K DMX512 3 80 LEDx6 24VDC 2.8KG
ET7077 42W 15° / 24° / 36° / 50° / 20°*50° 3000K / 4000K/ 5000K 3608lm(3000K 24°） ON / OFF 3 80 COBx1 220V-240V 3.8KG
  • 规格
  • 下载
  • 配件

ET7077.RGBW

Electrical and Control

Voltage 24VDC
Power45W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityLED X 6
Beam Angle12° / 25° / 36° / 60° / 15°*45°
Delivered Lumen
Colour RenderingCRI 80
SDCM
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight2.8KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE


ET7077.RGBW

文件

ET7077.RGBW

可选配件

  • 规格
  • 下载
  • 配件

ET7077


Electrical and Control

Voltage 220V-240V
Power42W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityCOB X 1
Beam Angle15° / 24° / 36° / 50° / 20°x50°
Delivered Lumen3608lm (3000K 24°)
Colour RenderingCRI 80
SDCM3
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3.8KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE


ET7077

文件

ET7077.IES

ET7077

可选配件
