ET9012

  • 产品信息

Fountain light

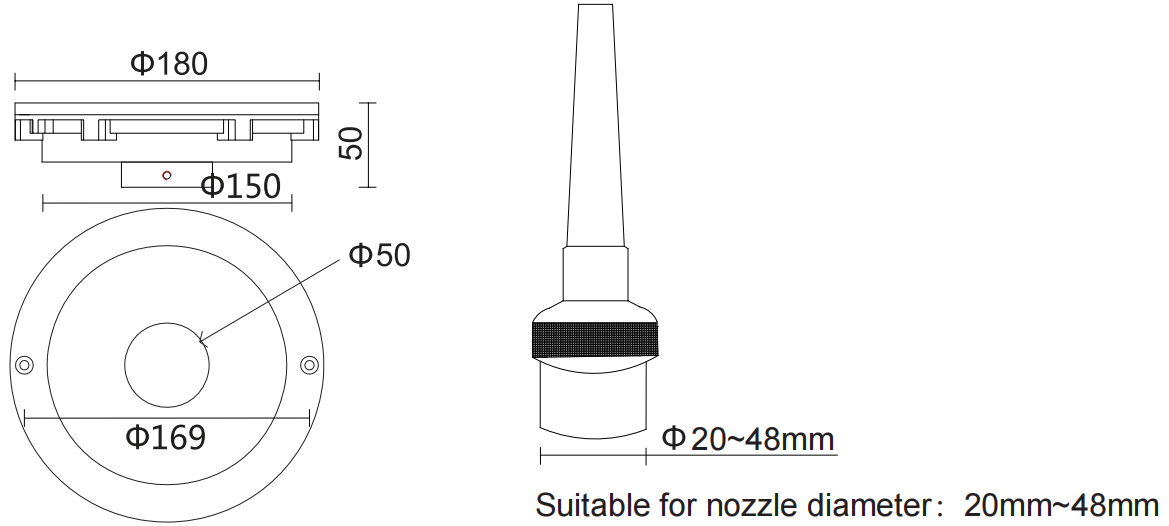

This series of products can be installed on nozzles of different sizes to illuminate the sprayedwater column.

lt can be hidden in water or installed on the ground.

The circular LED layout canmake the water column brighter and more colorful, making it suitable for fountain landscapelighting.

Stainless steel body.

Ultra white tempered glass.

Silicone gasket.

High efficiency PMMA lens.

Stainless steel external screws and mounting plate.

Special air blocking waterproof cable.


型号 功率 角度 色温 流明 控制方式 色容差 显色指数 LED 电压 重量
ET9012 16W 8° / 12° / 22° / 35° / 45° 2700K / 3000K / 4000K / 5000K 947.15lm(3000K 8°) ON/OFF 5 80 LEDx9 12VDC 3Kg
  • 规格
  • 下载
  • 配件

ET9012

Electrical and Control

Voltage12VDC
Power16W
Power SupplyRemote
ControlON/OFF / 0-10V / DALI
Cable1M H05RN-F 3x1mm2
Environmental                                                                                        -40 °C ~ 50 °C


LED and Optics

LED BrandCREE
LED QuantityLEDx9
Beam Angle8° / 12° / 22° / 35° / 45°
Delivered Lumen947.15lm（3000K 8°）
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingStainless steel material
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3KG
Warranty3 years
RatingIP68
Impact ProtectionIK09
CertificationsCE



ET9012

文件

ET9012

可选配件

  • Information
  • Downloads
  • Accessories
  • Service

71 025

DALI cross switch

DALI cross switch
sdsdsds

71 025

DALI cross switch

DALI cross switch
下载

Product data sheet

Product data sheet

The technical specifications in the instructions for use, product data sheets and quotation texts refer to the products manufactured at the time of publication. We are constantly working to improve the performance and efficiency of our products. The goods delivered may therefore deviate slightly from those advertised.
