ET6901

  • 产品信息

Side Bend Series.The maximum length can be 5m.

Unique optical light distribution structure design, uniform lighting surface and no shadow.

IP65 protection level, salt solution resistance, acids & alkalis and UV.

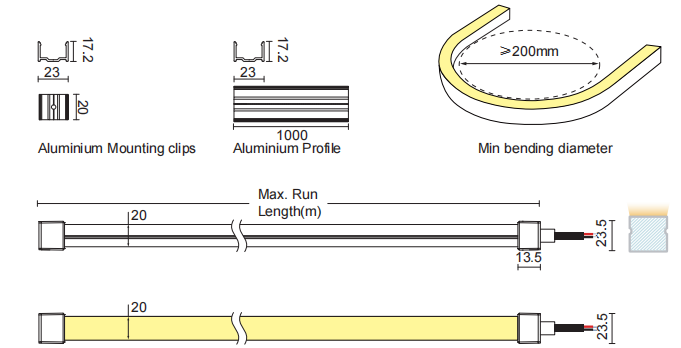

The LED neon strip can be only bend along the light surface, like the following drawing.

Don't twist the light, and don't bend smaller than the allowed minimum 200mm bending diameter.


型号 功率 角度 色温 流明 控制方式 色容差 显色指数 LED 电压 重量
ET6901 10W/m 110° 2700K / 3000K / 4000K / 5000K 480lm ON / OFF 5 80 SMDx120 24VDC 0.35KG
  • 规格
  • 下载
  • 配件

ET6901

Electrical and Control

Voltage24VDC
Power10W/m
Power SupplyRemote
ControlON/OFF / 0-10V / DALI
Cable0.2M H05RN-F 3x1mm2
Environmental-20 °C ~ 40 °C


LED and Optics

LED BrandOSRAM
LED QuantitySMDx120
Beam Angle110°
Delivered Lumen480lm
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingUsing optical grade environmental protection silicone material
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight0.35KG
Warranty3 years
RatingIP65
Impact ProtectionIK05
CertificationsCE





ET6901
